| Article number | 606001 |
| Manufacturer article number | - |
| EAN code | - |
| Trademark | RAWBIKE |
Vehicle Class
Vehicle Class
Different Vehicle Categories
Moped class 2
A class 2 moped is equipped with a motor between 250 W and 1000 W and can reach a maximum speed of 25 km/h using a throttle, along with pedal assistance. To operate this type of moped, you must be at least 15 years old and hold a driving certificate for class 2 mopeds. However, if you turned 15 before October 2009, no driving certificate is required.
To drive the moped, a helmet is mandatory, as well as at least third-party liability insurance. It is also recommended to obtain partial insurance for theft protection.
The moped should be ridden on bicycle paths unless signage indicates "no mopeds."
Bicycle
A bicycle may have a motor of up to 250 W, and the motor should primarily provide power only through pedaling. Our e-bikes are equipped with a throttle, but this is limited to 5 km/h (walk assist).
The e-bike does not require a driving certificate or special insurance, as it is typically covered under home insurance. However, we still recommend contacting your insurance company to check the specific terms for your situation.
| E-bike |
| Insurance | No, does not require additional insurance |

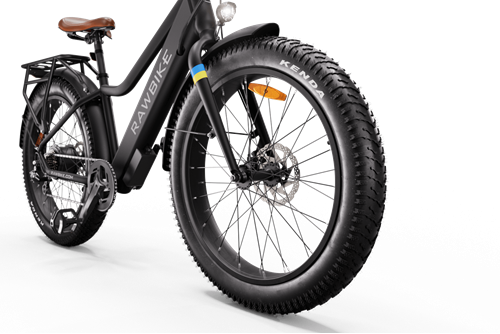

| Rim and Tire | 26" aluminum rims with Kenda Krusade all-terrain tires and Kevlar-reinforced puncture protection |
| Included | Charger, keys, and tool kit |
| Foldable | No |
AVS Compatible
AVS Compatible
<p><strong>AVS</strong></p>

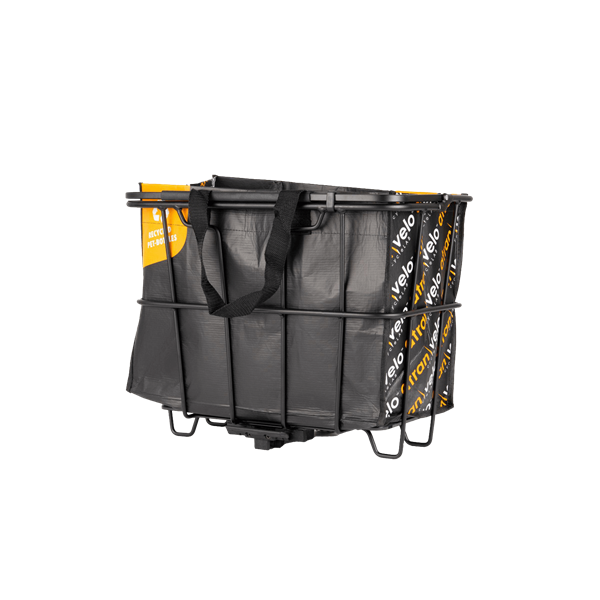

<p>AtranVeloSystem is a patented, minimalist system for securely mounting accessories on your bike. It includes a wide range of high-quality bags, baskets, and boxes for different occasions. All accessories are modular and compatible with both front and rear carriers, and the smart locking mechanism makes it easy and intuitive to switch between different racks and accessories.</p>
<p><strong>AVS+</strong></p>
<p>AVS+ is a reinforced and enhanced version of the AVS system, seamlessly compatible with all existing AVS accessories. AVS+ also works with bike accessories and child seats from various brands and can handle loads of up to 35 kg. The system offers great flexibility for heavier cargo, long-distance rides, commuting, or everyday errands. The robust AVS+ adapter features a reinforced aluminum hook for maximum strength and safety.</p>
| Yes, AVS+ compatible |
Luggage Rack
Luggage Rack
What does ISO 11243:2016 mean?
ISO 11243:2016 is the international standard for bicycle and e-bike rear racks. Certification means the rear rack has undergone extensive testing for strength, stability, and long-term durability under both static and dynamic loads.
The standard ensures that the rear rack can safely support its specified load capacity and perform reliably during everyday use, even on uneven terrain. It also includes requirements for design, mounting, durability, and product information to meet high safety standards.
ISO 11243 also covers rear racks intended for transporting children in compatible rack-mounted child seats. The certification is therefore an important indicator of quality and safety for both everyday transport and family use.
Please note: A certified rear rack does not automatically mean that any child seat can be used. The child seat must also be approved according to the applicable safety standard and be compatible with the specific rear rack.

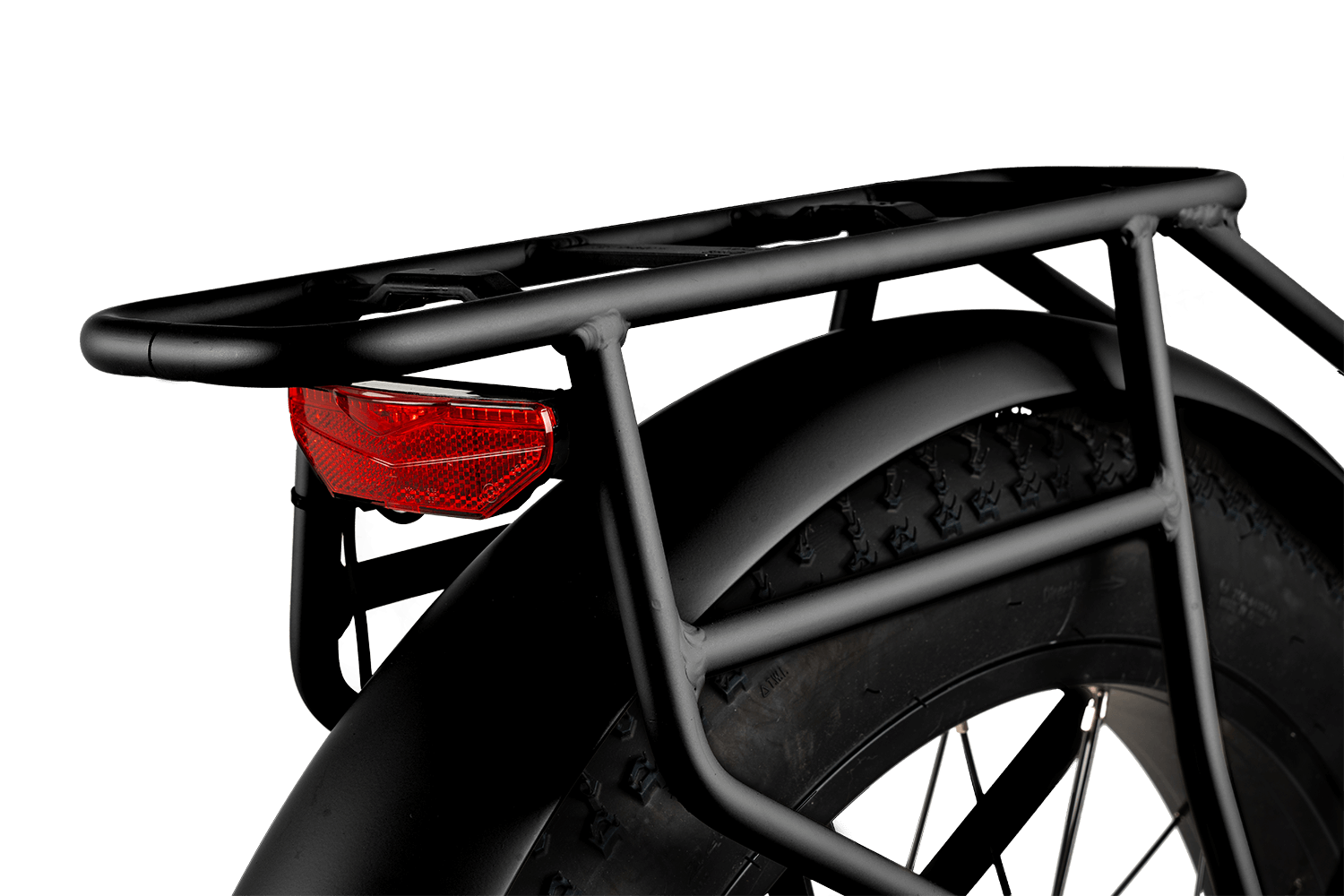

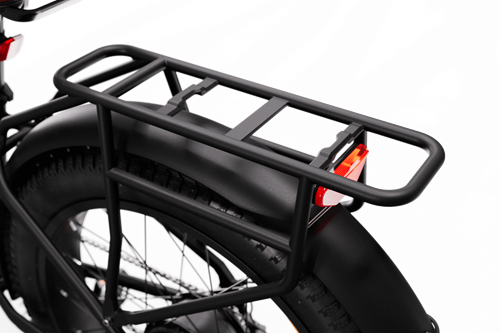

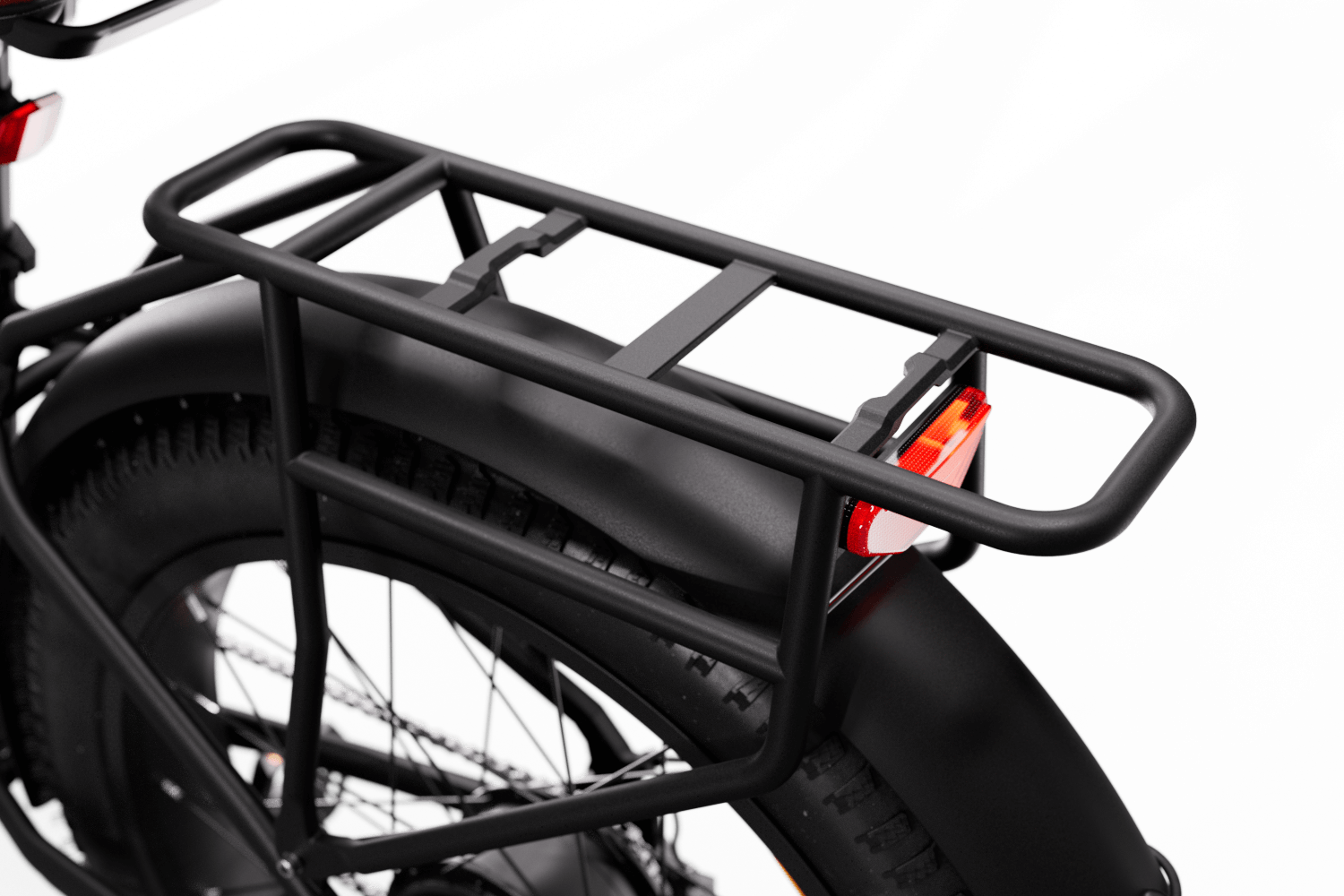

| Atran Velo rear rack with integrated AVS+, 35 kg load capacity, and certified according to ISO 11243:2016 |

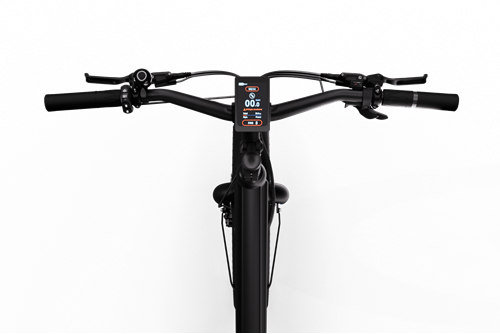

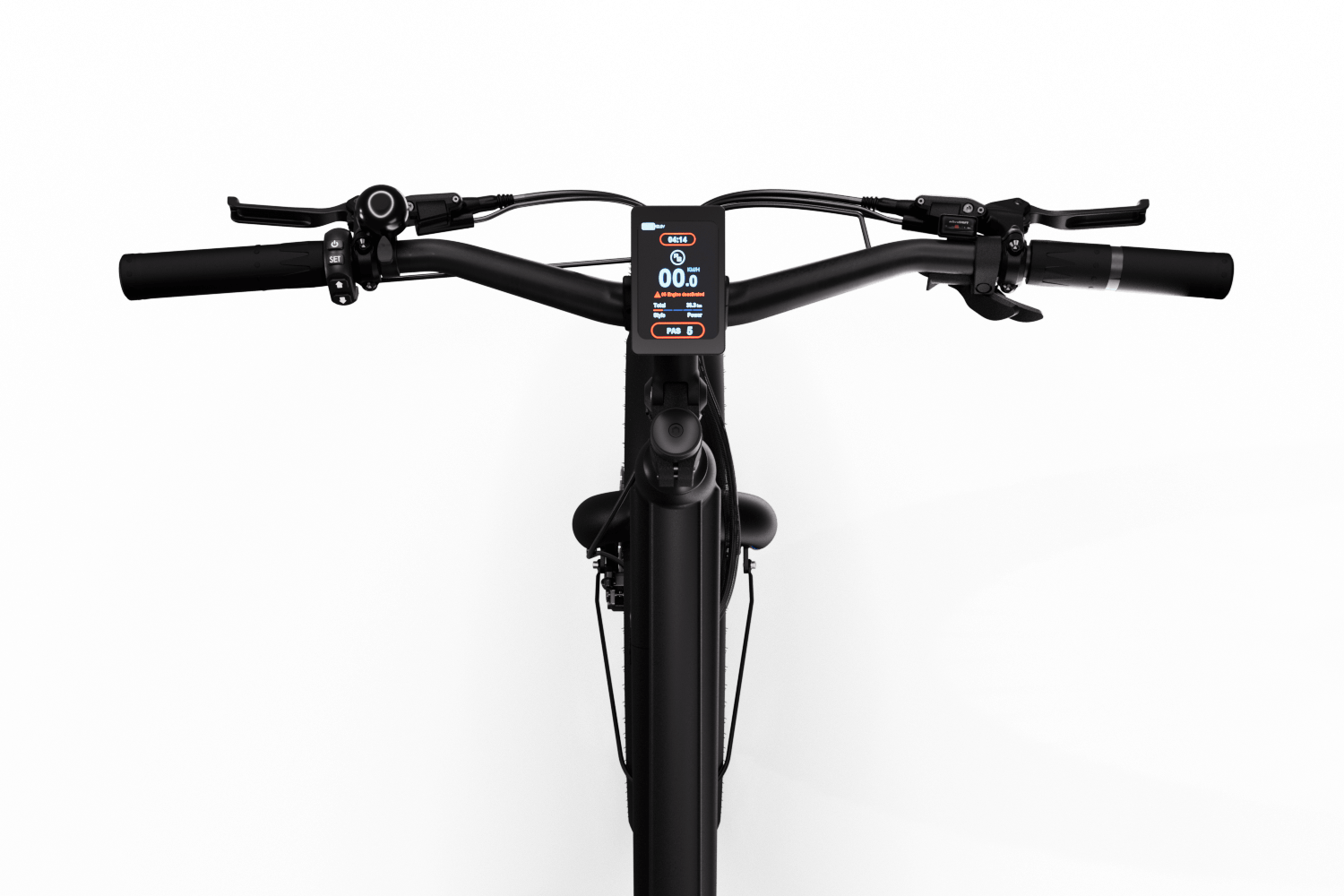

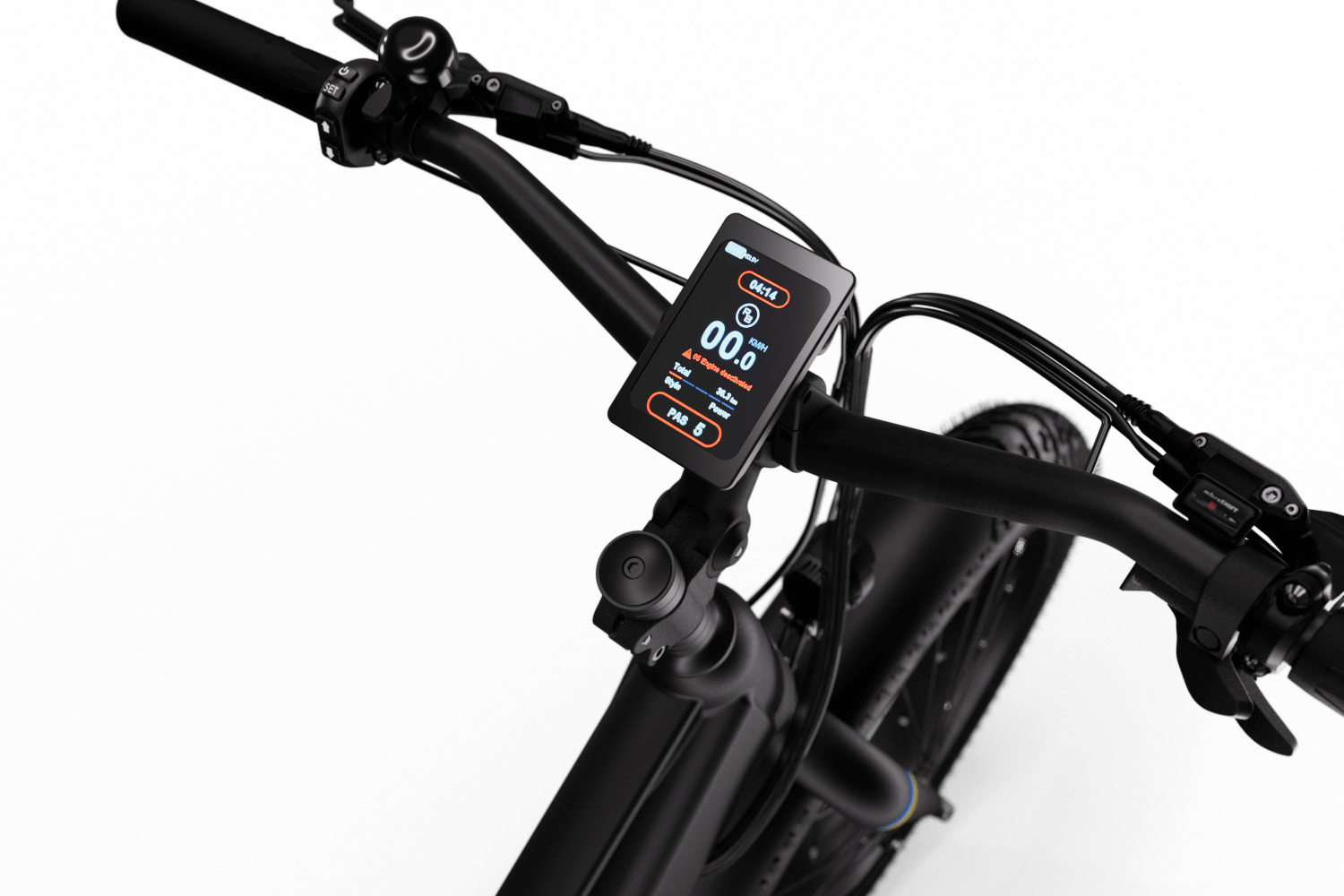

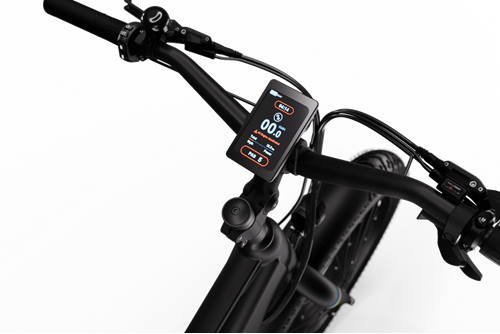

| Display | Color LCD screen with clock function, service intervals, etc. |

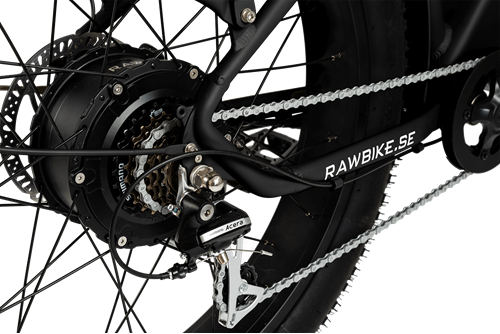

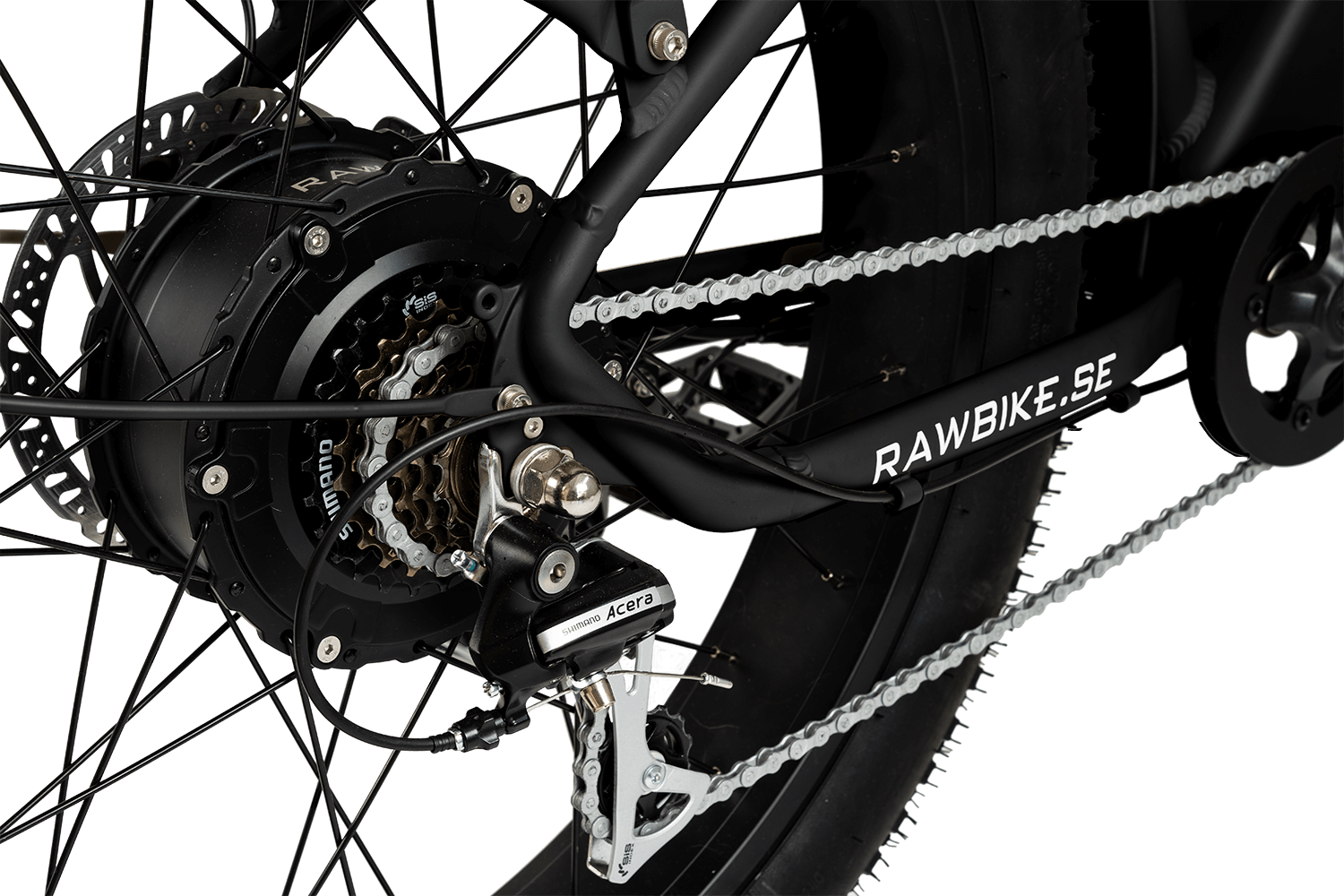

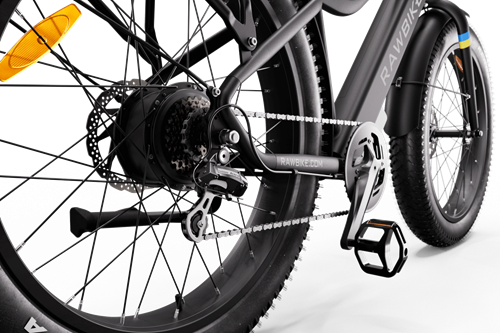

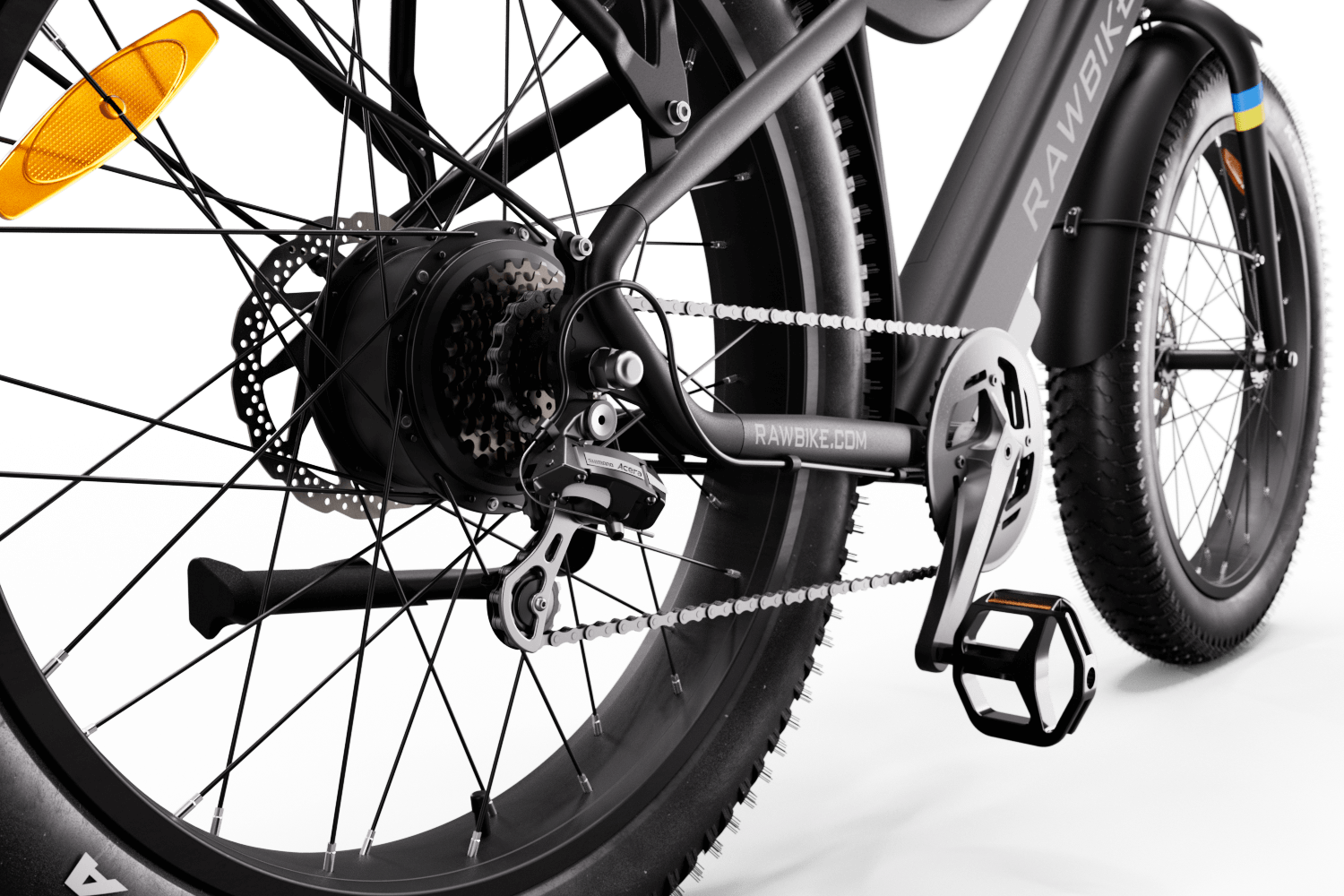

| Motor / Drivetrain | 250W brushless motor from Japanese Dapu installed in the rear wheel |
| Speed | 25km/h Assisted through the pedals |
| Thottle | Yes, limited to walking speed of 5km/h (walk assist) |
Sensor
Sensor
The difference between a speed sensor and a torque sensor on an e-bike
A speed sensor detects when you start pedaling and provides motor power based on that. The motor delivers a preset level of assistance regardless of how hard you press on the pedals. This creates a simple and powerful riding experience, often perceived as stronger and more like a moped feel. This means you never have to feel sweaty.
A torque sensor measures how hard you pedal and adjusts the motor power accordingly. The more force you apply, the more assistance you receive. This provides a more natural, responsive, and bicycle-like riding experience.
| Speed sensor |

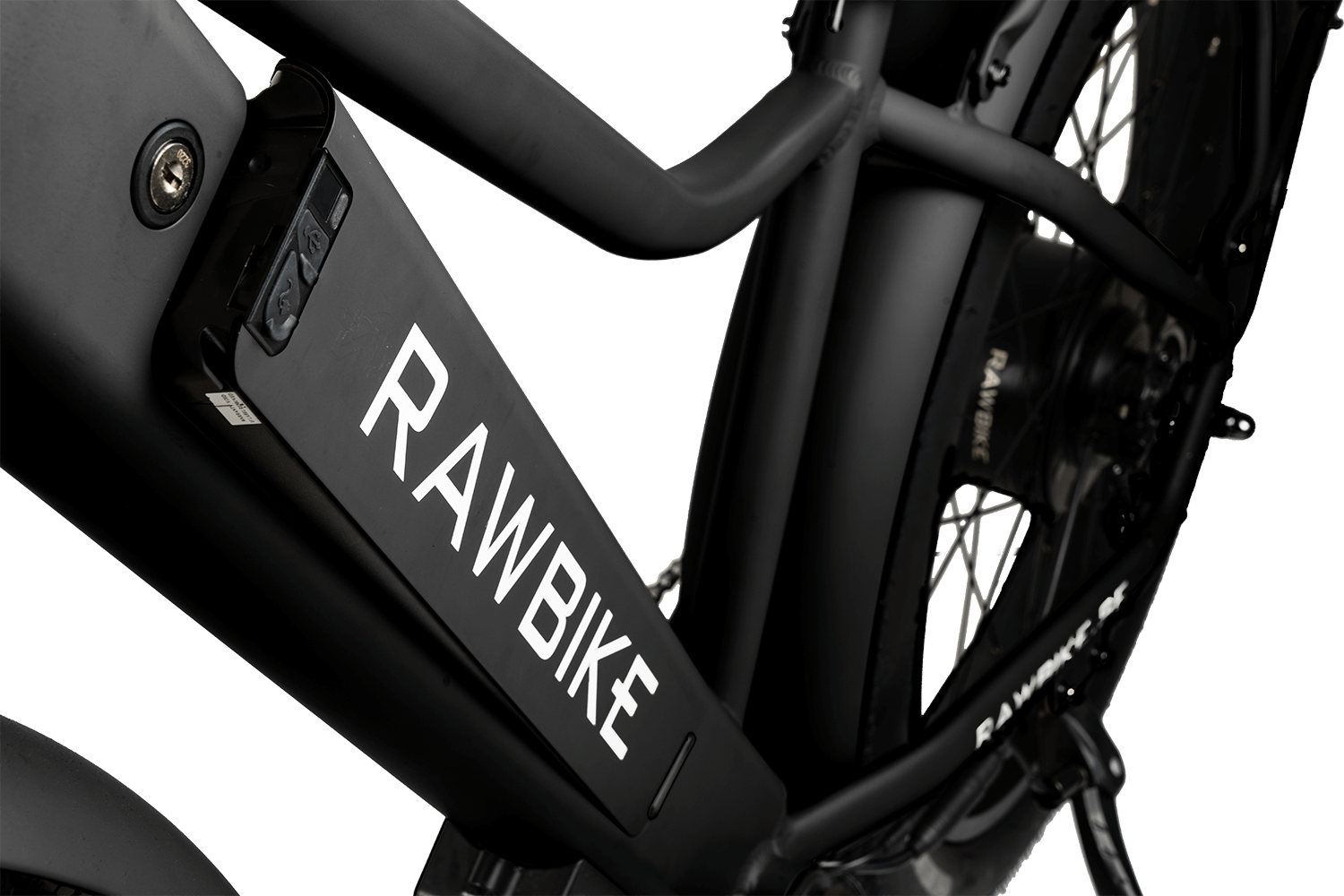

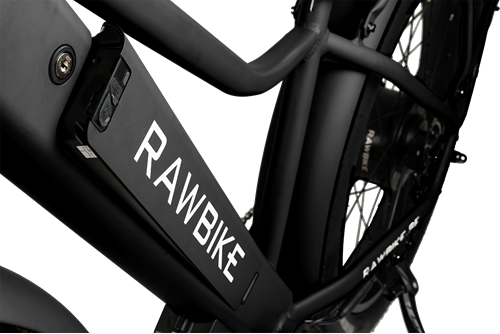

| Battery | 48 V / 15 Ah (1008 Wh) lithium-ion battery with premium LG cells |
Maximum Range
Maximum Range
Shows how far you can travel under ideal conditions – warm weather, few hills, minimal stops and starts, and smooth surfaces – before the battery is completely discharged.
| 60 km |
Average Range
Average Range
Indicates how far you can travel under normal (or average) conditions (medium-sized hills, some start and stop, and varying surfaces) before the battery is completely discharged.
| 50 km |
| GPS Tracker | No |
| Brake System | Tektro Auriga E-Comp HD-E500 hydraulic disc brakes with 180 mm brake discs |

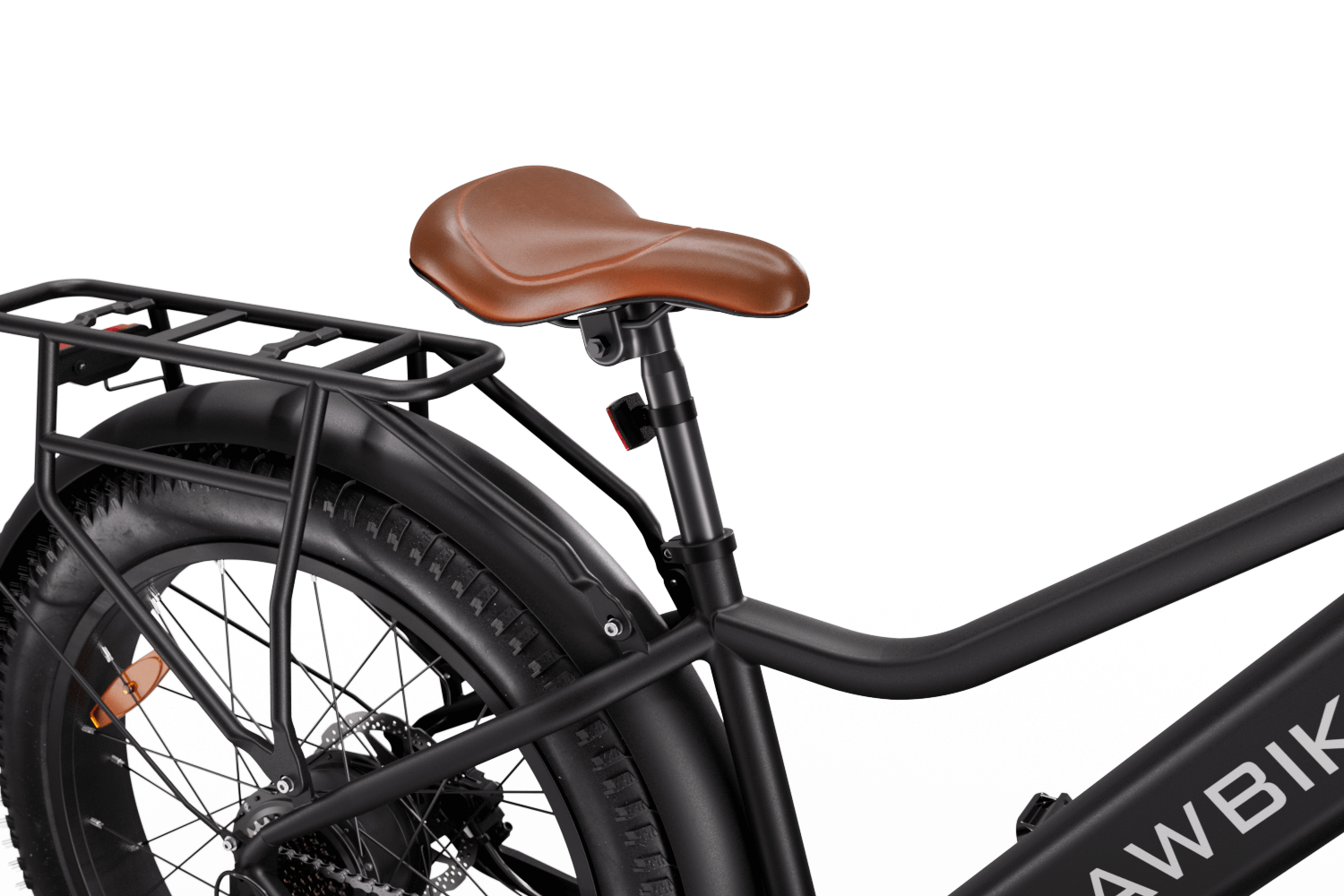

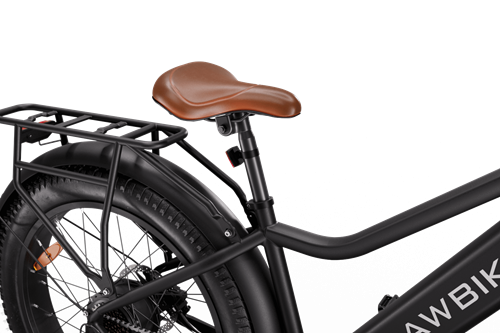

| Saddle | Saddle from Knus in synthetic leather |

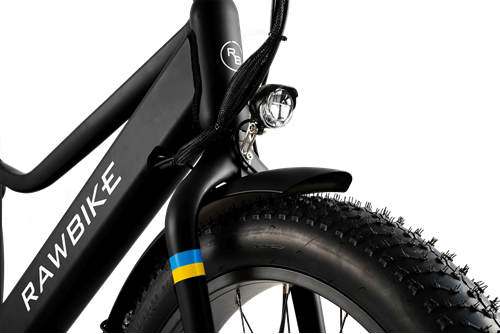

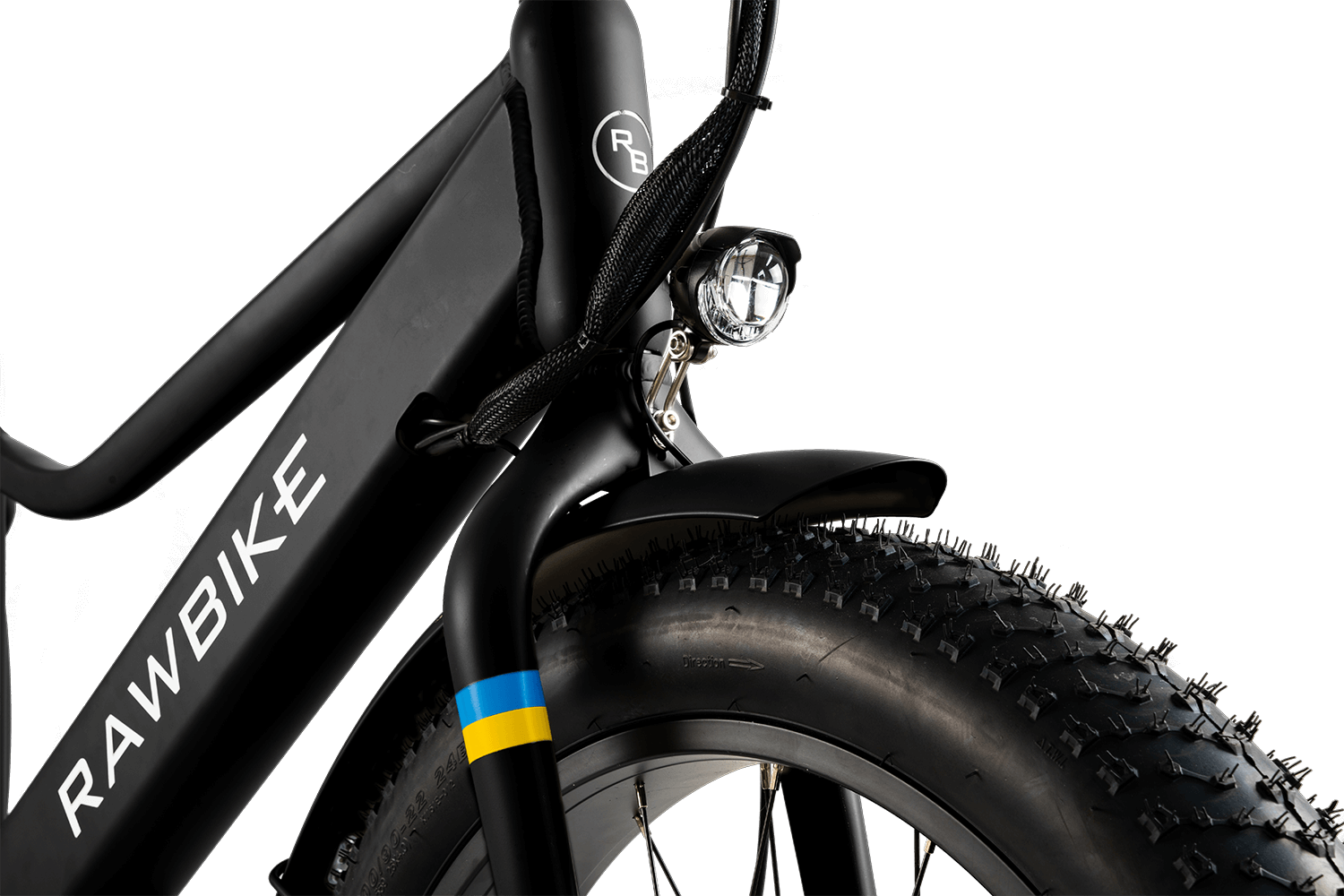

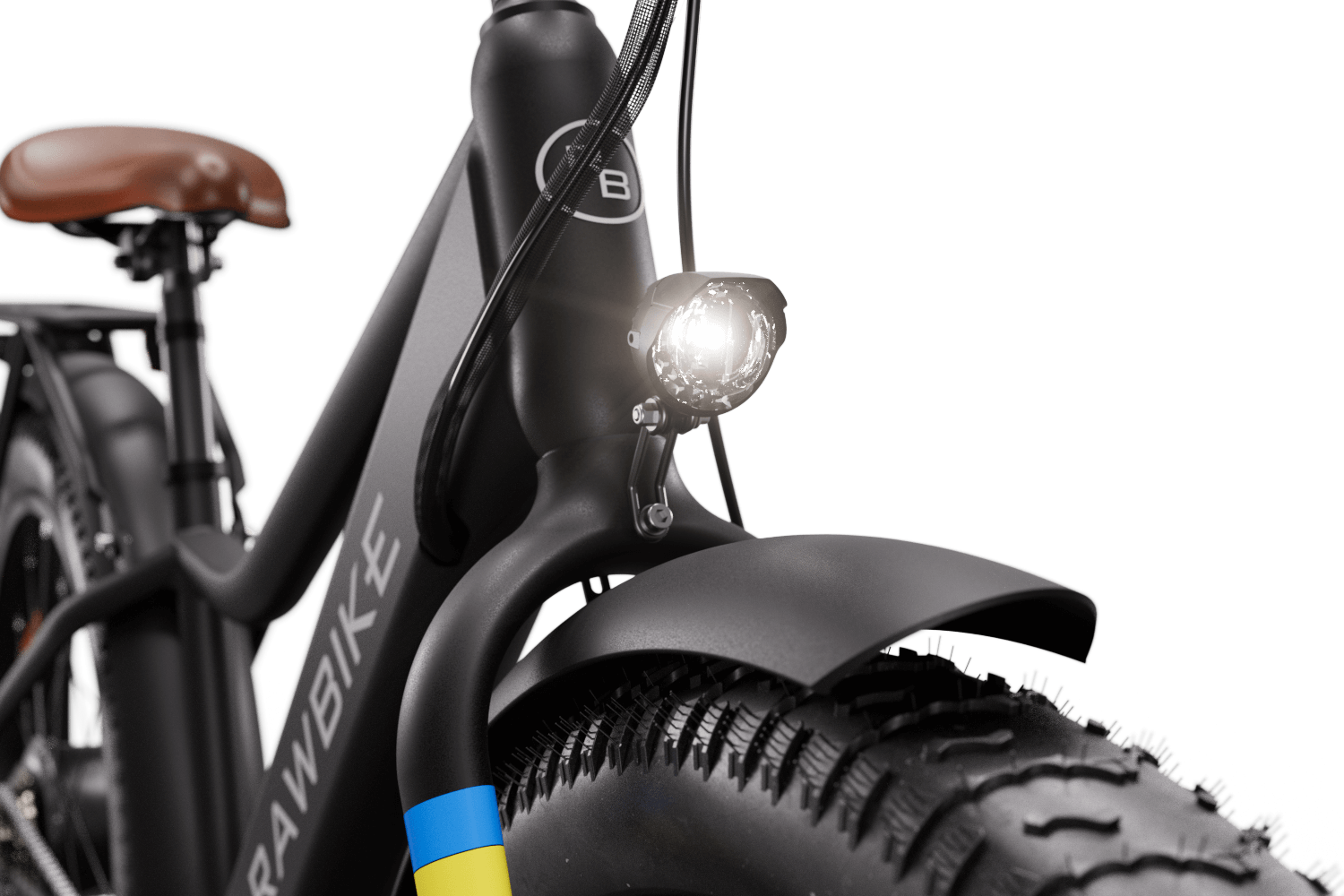

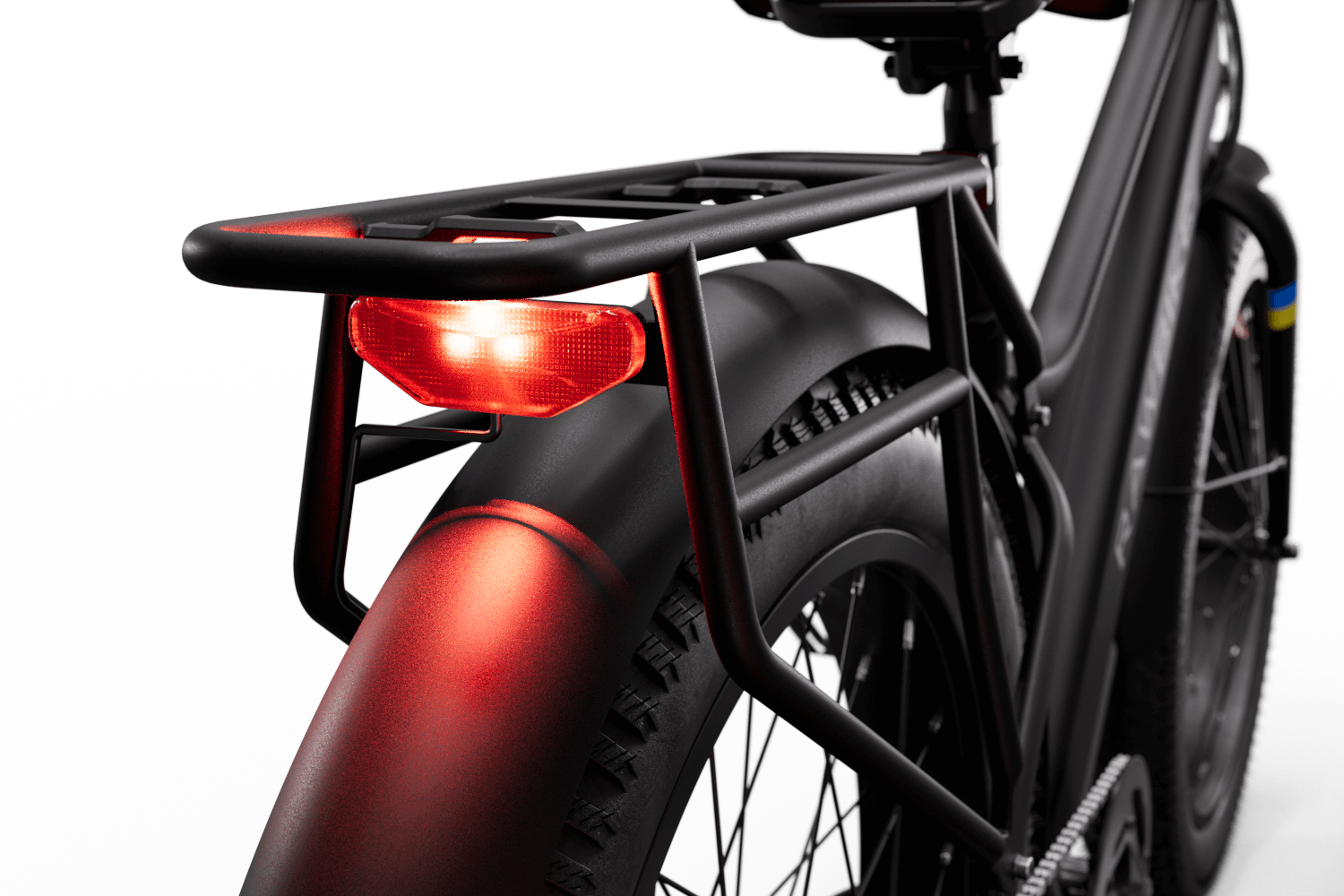

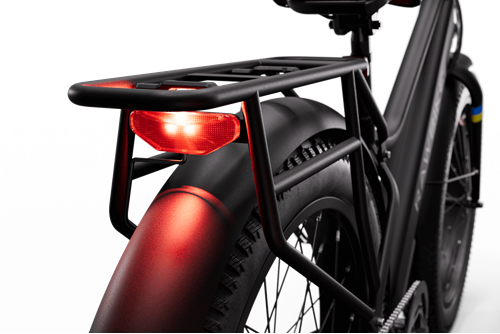

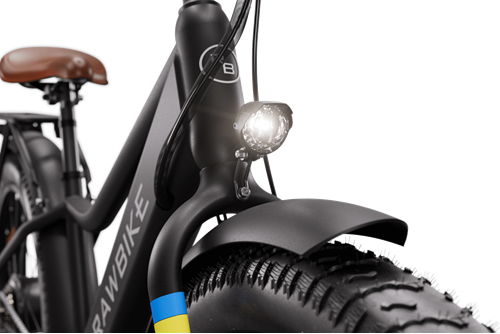

| Lights | Front and rear lights integrated with the electrical system and controlled via the display. The front light has 120 lux, and the rear light has a brake light function |
| Pedals | Fixed Wellgo pedals made from die-cast aluminum for exceptional durability |
| Dimensions and weight |
| Total Weight | 33kg incl. Battery |
| Maximum Rider Weight | 120 kg |
| Certification |
CE Certified
CE Certified
A CE certification for a bicycle indicates that the vehicle meets the EU's basic requirements for health, safety, and the environment. The certification confirms that the bicycle is manufactured in accordance with EU technical specifications and guidelines, but it is not linked to any unique frame number. The CE marking means that the bicycle has undergone testing to ensure it meets the standards required for safe use within the EU.
| Yes |
| Warranty | 2-year warranty |
